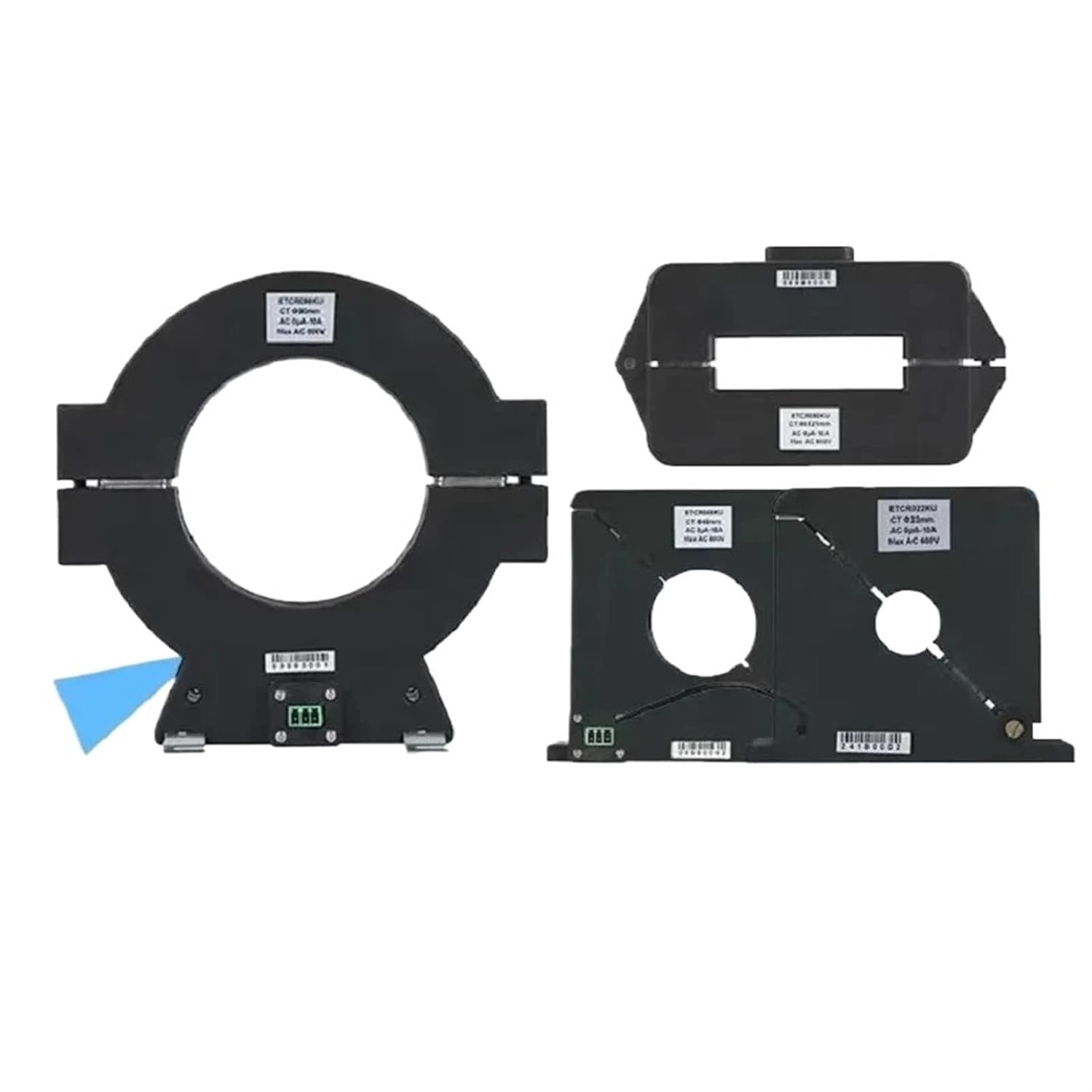

ETCR022KU ETCR045KU ETCR080KU ETCR090KU Weak Leakage Current Sensor 0.0mA-10A AC Resolution 1uA Split Core CT Probe Microampere(ETCR045KU D 45mm)

Oscilloscope AccessoriesETCR022KUETCR045KU ETCR080KU ETCR090KU Weak Leakage Current Sensor 0.0mA-10A AC Resolution 1uA Split Core CT Probe Microampere Tester Suitable Online InstallationProduct Description1.High anti-interference ability, CT double-layer shielding technology, with high performance and high accuracy, suitable for complex interference environment,Can accurately measure the weak current of 1 microampere.2.Split type structure design, no need to interrupt the power supply and disconnect the circuit in testing, easy to carry and especially suitable for on-site online testing. Non-contact measurement, easy to operate, fast, safe and reliable.3.The range, transformation ratio, output interface of the sensorcan be according to customer requirements.Technical SpecificationFunctionDetect AC leakage current, current, harmonic current, phase, power, power, power factor, etc.Detection methodSplit Type CT, suitable for online installationETCR022KUCT size22mmETCR045KUCT sizePlatinum 45mmETCR080KUCT size80mm*20mmETCR090KUCT sizePlatinum 90mmRange0.000mA~10A ACResolution1uA ACAccuracy Class0.5Turn ratio1000:1(Can be on request)Phase error1 °(50Hz/60Hz;23 ± 2 )Reference loadRL:0 ~ 1000mA 300; 0 ~ 10A 30ShieldDouble shield suitable for complex interference environmentsOutputThe current sense output can be externally connected to the RL to take the voltage.Output lead2-core shielded wire, wire length 150mmWire positionThe tested wire is at the center of the jawResponse frequency10Hz~100KHzLine voltagebelow AC 600VDimensions96mm × 94mm × 34mmWeightAbout 480gWaterproof levelIP55Workingenvironment-15 ~ 50; below 80% RHStorage environment-10 ~ 60; below 70% RHInsulationAC 3700kV/rms (Between core and shell)Protection TypeIEC1010-1,IEC1010-2-032,Pollution 2, (600V)
